216-232 MHz
PROFESSIONAL GRADE YAGI
Pro232-12

Download the PDF


Operating Frequency (VSWR) MHz 216-232
Nominal Gain (dBi) 12
Horizontal Beamwidth (Deg-3dB) 65
Vertical Beamwidth (Deg-3dB) 47
Front To Back Ratio (dB) 17
Power Rating (W) 300
Length (inches) 60
Width (inches) 28
Antenna Weight (lbs.) 8
Cross Sectional Area (Max. Ft²) 1.42
Lateral Thrust at 100mph (lbs.) 38
Rated Wind Velocity (mph) 150
Rated Wind Velocity with 1/2'' radical (mph) 90





pro232-12

pro232-12 is equipped with a standard feedline length of 5' and N-Female connector.

Feedline Options: Extended feed line available in 5' increments up to a maxiumum of 50'. All extended feed line antennas equipped with LMR 400 cable and N-Male connector.



c1001 Antenna Mount

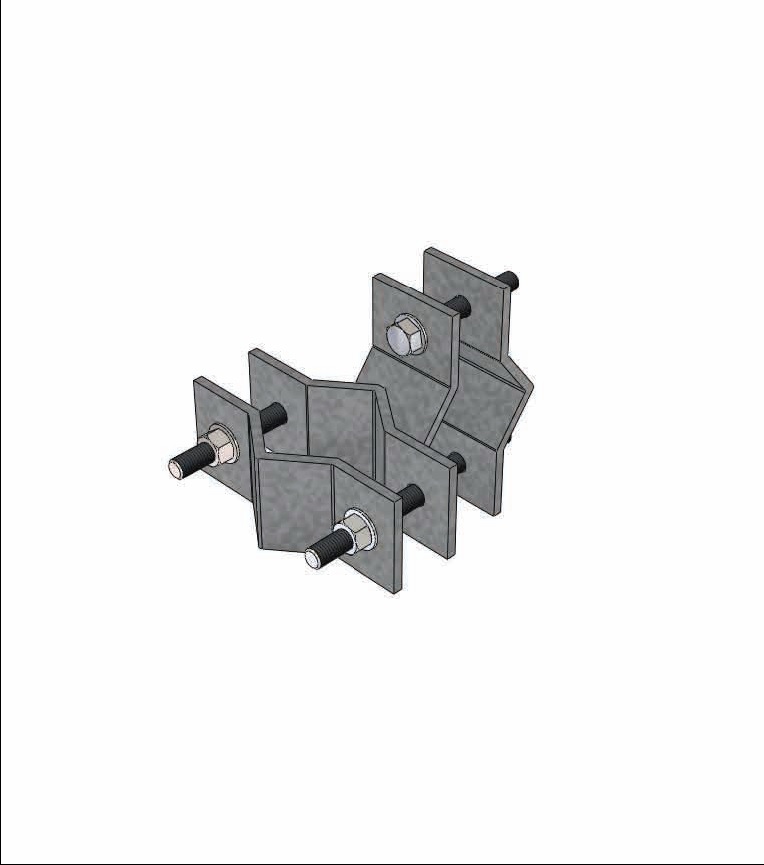

Includes mounting bracket: C1003

Easily permits vertical or horizontal polarization. Mounts on 1"-3 1/2"



The pro232-12 is engineered to meet or exceed the requirements of a broadband, high gain, Professional Grade 220 MHz Yagi antenna.

The pro232-12 provides 12 dBi gain and operates effectively across the frequency band of 216-232 MHz with a VSWR of 1.5:1 or less.

All Wavelink Professional Grade antennas are manufactured using high strength 6061-T6 aluminum. The dipole and directive elements are fully welded to the boom completely eliminating misalignment problems. The antenna is also electrically one piece, effectively eliminating intermod issues and future performance degradation.

The dipole design incorporates an integral feed cable available in lengths up to 50 feet. The extended feed line option offers many benefits:

1. Dramatically reduces install time, by up to 2 hours per site

2. Completely eliminates the connector at the antenna

3. Improves signal strength ½ to ¾ of a dB

4. Eliminates connector weatherproofing concerns

5. Significantly reduces long term cost of ownership

The pro232-12 is anodized to protect against environmental degradation even in the most severe environments.
